Film-Faced Plywood

Previous Next

Film faced plywood is used as a formwork in industrial, commercial and civil works. It has many advantages compared to traditional product such as

  • Absolutely flat concrete surface, no mortar required after casting.
  • Light density, portable, easy for installation. Labor cost saving and project schedule shortening.
  • Waterproof, re-use for many times, high economic efficiency.
  • High compressive strength, response calculated secure in construction.
  • Easy to saw and link each other, favorable for usage.

Features

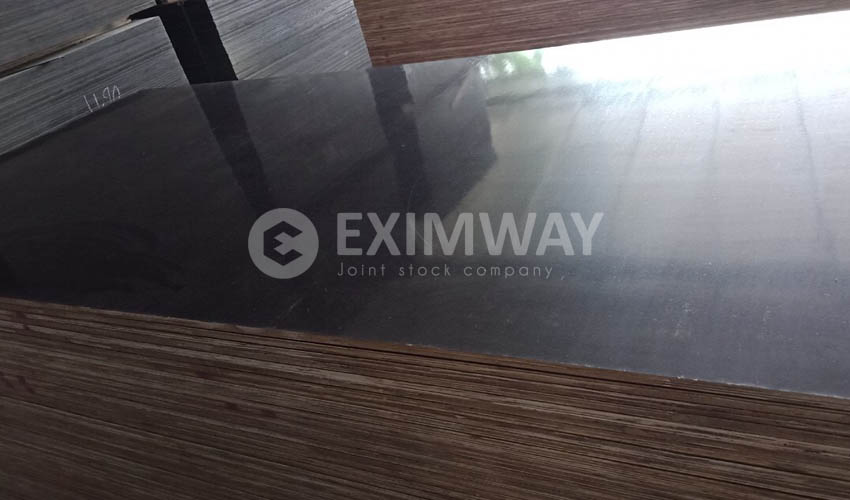

  • Film is phenolic resin impregnated paper to make the smooth, low scratched surface and protect the plywood usage.

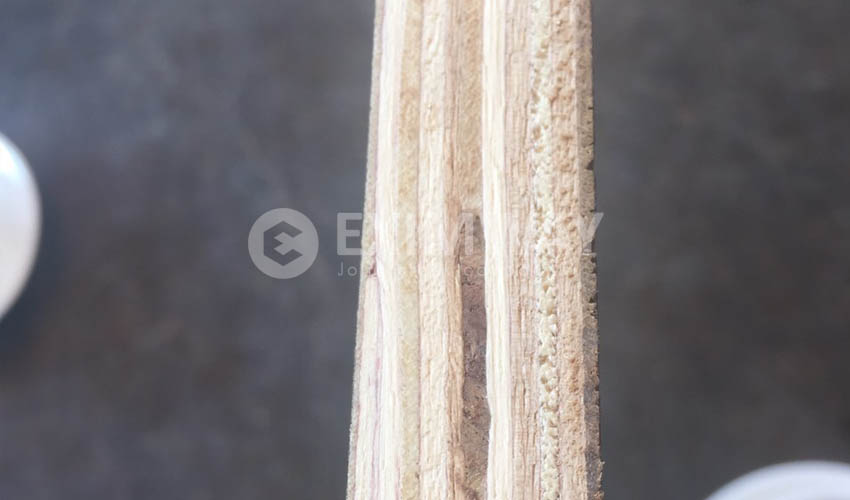

  • Plywood core is using either Poplar (white or light yellow color and high flexibility, fast growing up wood) or Hardwood (the high density wood such as Oak, Juglans, Cherry…)
  • Plywood includes many layers of veneers that be hot pressed for 2-3 times with water boiled proof (WBP) glue helping to increase elasticity, hardness of plywood and working capability in wet outdoor condition.
Items Value
Size

1.Small sizes: 915 x 2135mm, 1525 x 1525mm

2.Standard sizes: 1220 x 2440mm, 1250 x 2500mm

3.Big size: 1500 x 3000mm, (accept customization)

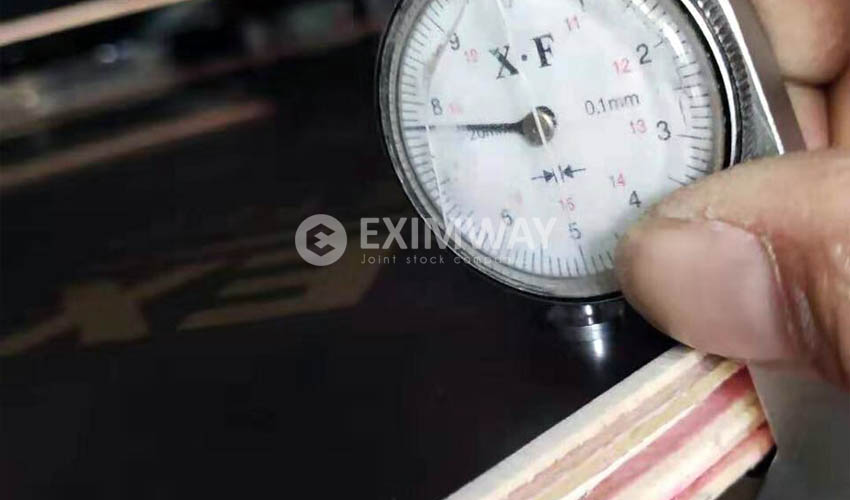

Thickness 12mm; 15mm; 18mm (or as your request)
Core Eucalyptus, Acacia or mix other hard wood.
Face&back Black/Brown Film (With/without logo)
Glue Melamine 10% - 15%; WBP glue
Emission content of formaldehyde E1/E2 (MUF)
Usage  Construction / Shuttering; decking; special packing
Re-Used times 8 to 12 times.
Layers 12mm (7/9 ply); 15mm (9/11 ply); 18mm (11, 13, 15ply)
Certificate TCVN Quatest 1
Moisture content 8% - 15%
Packages Packed in pallets and secured with a belt
